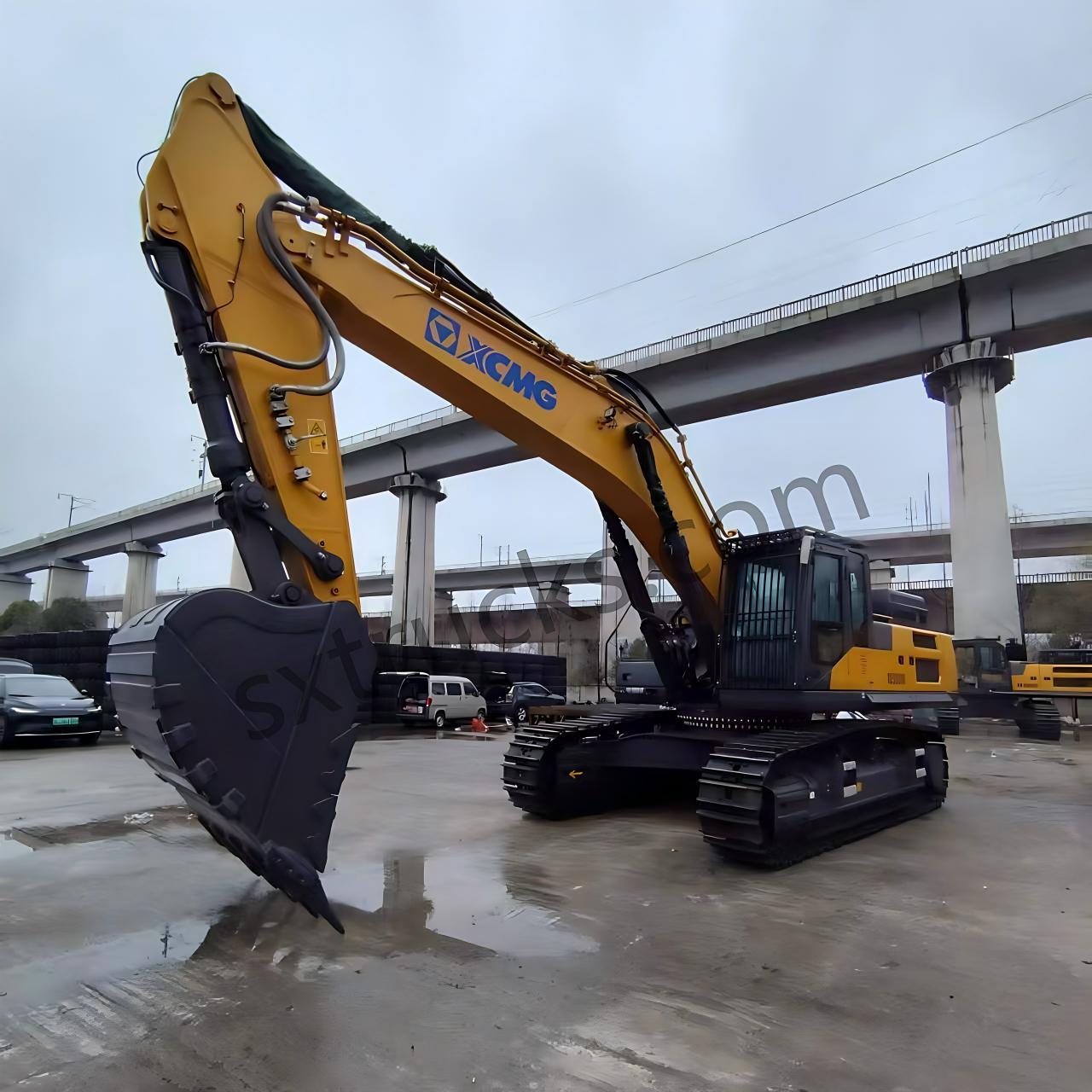

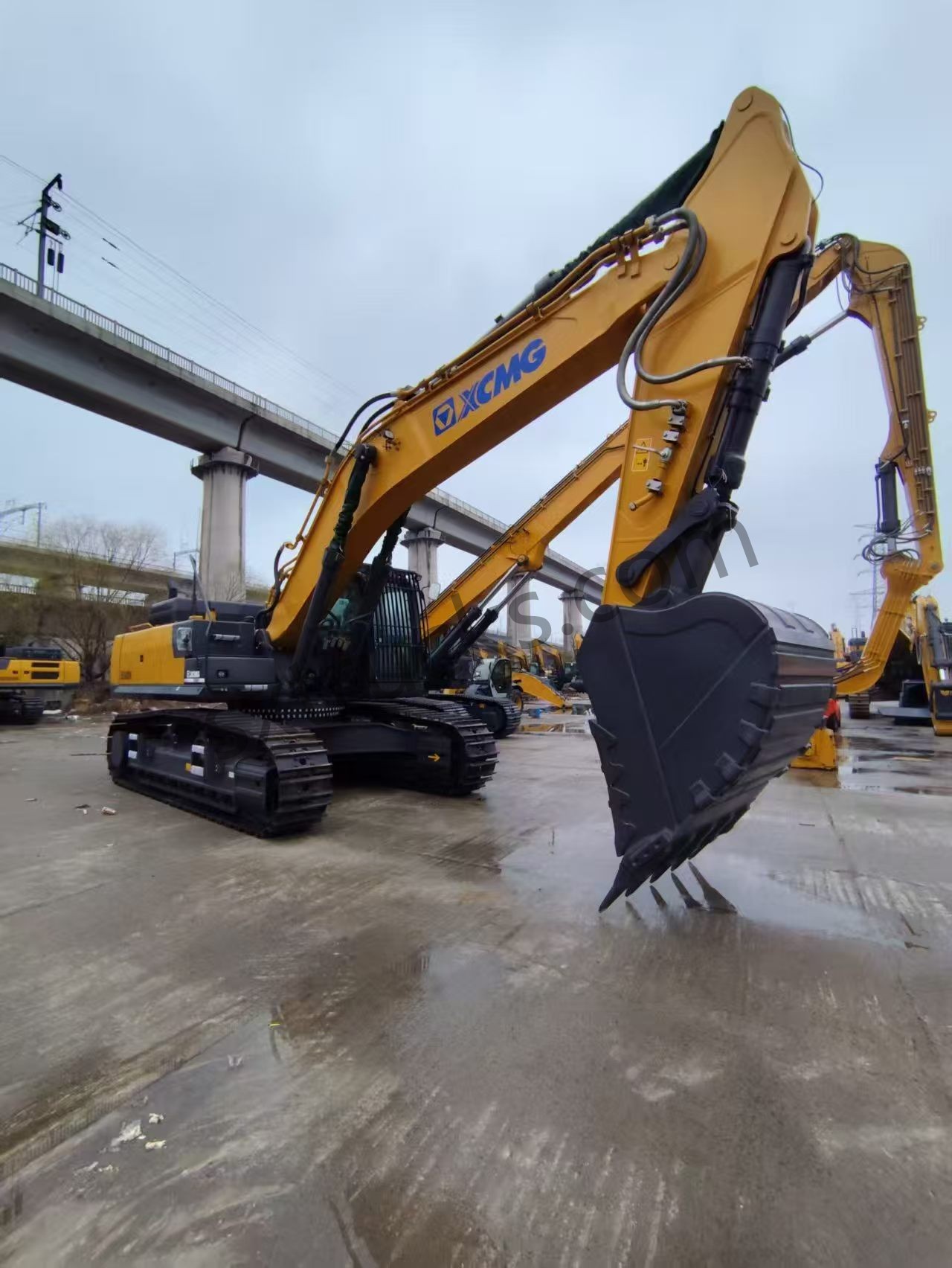

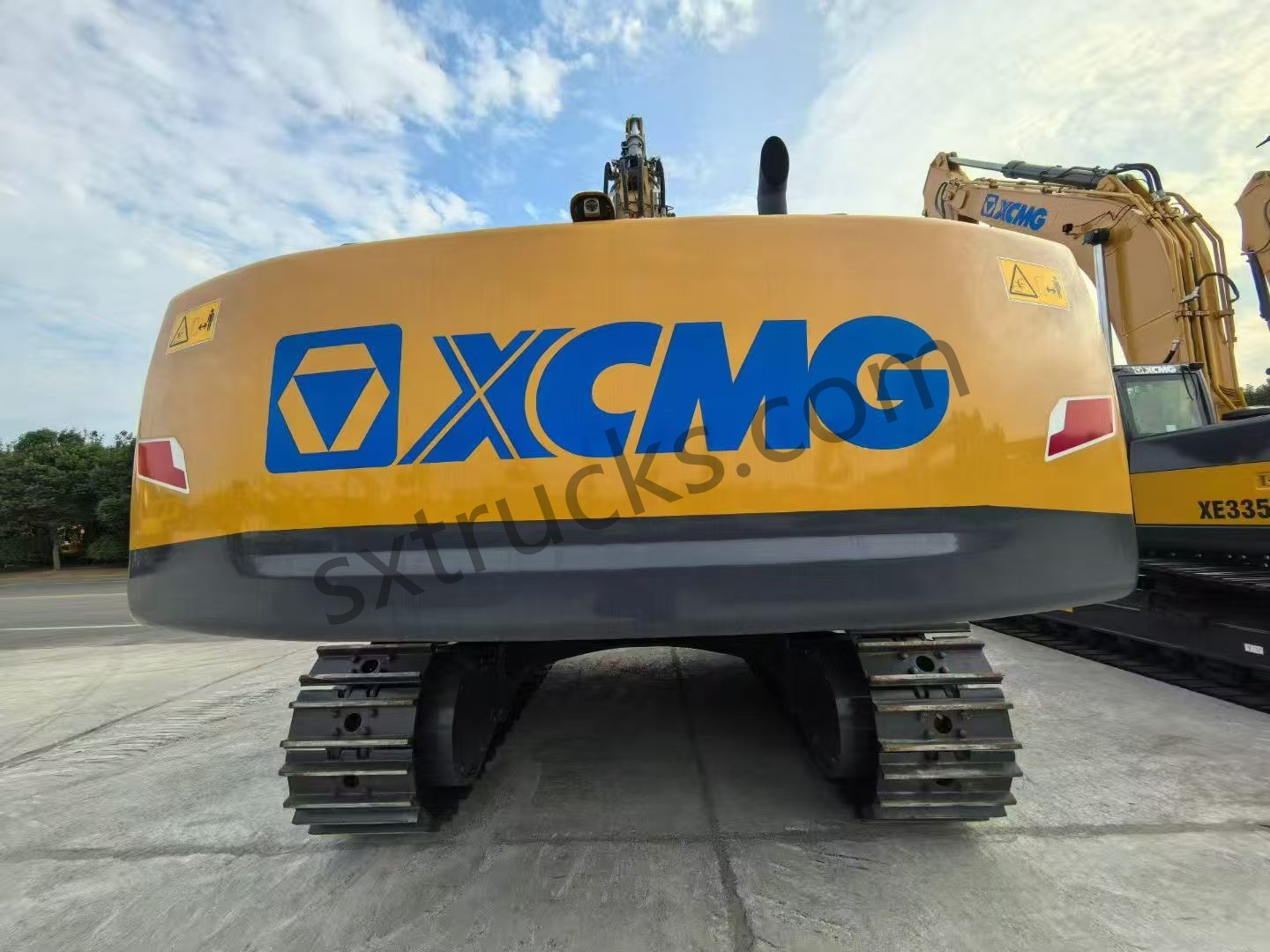

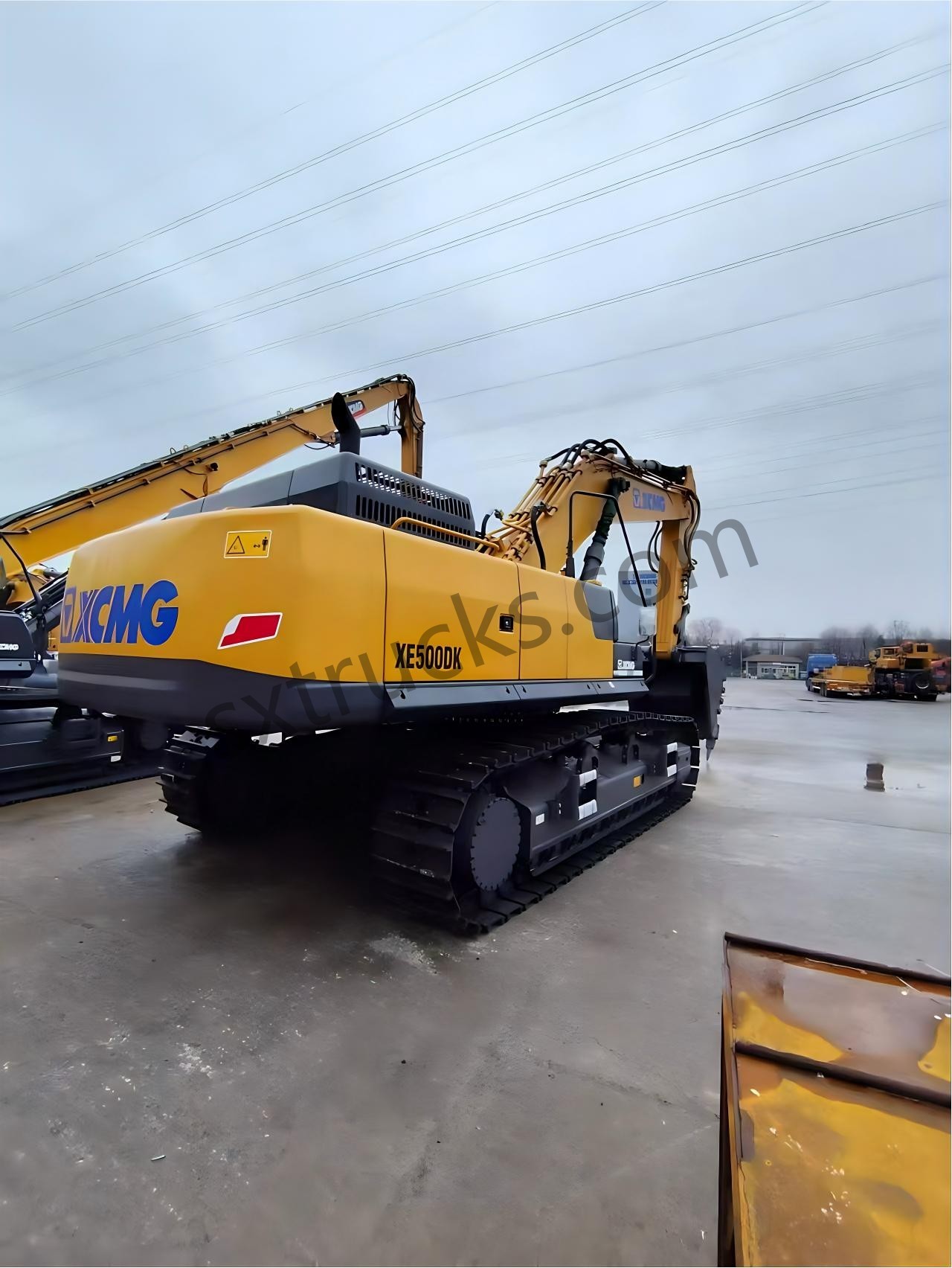

This vehicle is a professional XCMG XE500DK excavator with strong power and stable hydraulic system, suitable for high-intensity operations such as mining stripping, quarrying, large-scale earthmoving, and rock handling. Complete vehicle maintenance, stable performance, and support for customized modifications.
| Description | Parameter value |
|
Product Name |
XCMG XE500DK Hydraulic Excavator |
|
Application Scenarios |
Mining stripping, quarrying, large-scale earthmoving, road construction, municipal engineering, rock handling |
Engine |
Cummins QSM11 6-cylinder turbocharged diesel engine, 11L displacement, direct injection, 4-stroke, water-cooled, air-to-air intercooled
|
|
Emission Standard |
Tier 3 / Stage IIIA |
|
Operating Weight |
48,100 kg |
Bucket Capacity |
2.6 - 3.1 m³ |
Max Digging Radius |
10,855 - 10,970 mm |
Max Digging Depth |
6,660 - 7,150 mm |
|
Cab |
ROPS/FOPS certified high-rigidity cab with 360° visibility, noise reduction design, suspension seat, automatic climate control
|
|
Travel System |
Heavy-duty tracks (600mm track shoes), travel speed 5.4/3.2 km/h (high/low), gradeability ≥35°, max traction force 338 kN
|
|
Color |
XCMG Yellow (body) + Black (undercarriage/counterweight)
|
|
Customization & Modification |
Supports attachments: hydraulic hammer, grapple, quick coupler, etc.; optional bucket types (2.6-3.1 m³); Kawasaki high-end hydraulic system |
