This vehicle is a second-hand refurbished vehicle, with the engine, gearbox, and chassis all undergoing professional maintenance. The vehicle is in stable condition and has a clean appearance, suitable for mining, large-scale construction projects, and heavy-duty earthmoving works in Africa. It can be put into operation immediately upon delivery.
| Description | Parameter value |

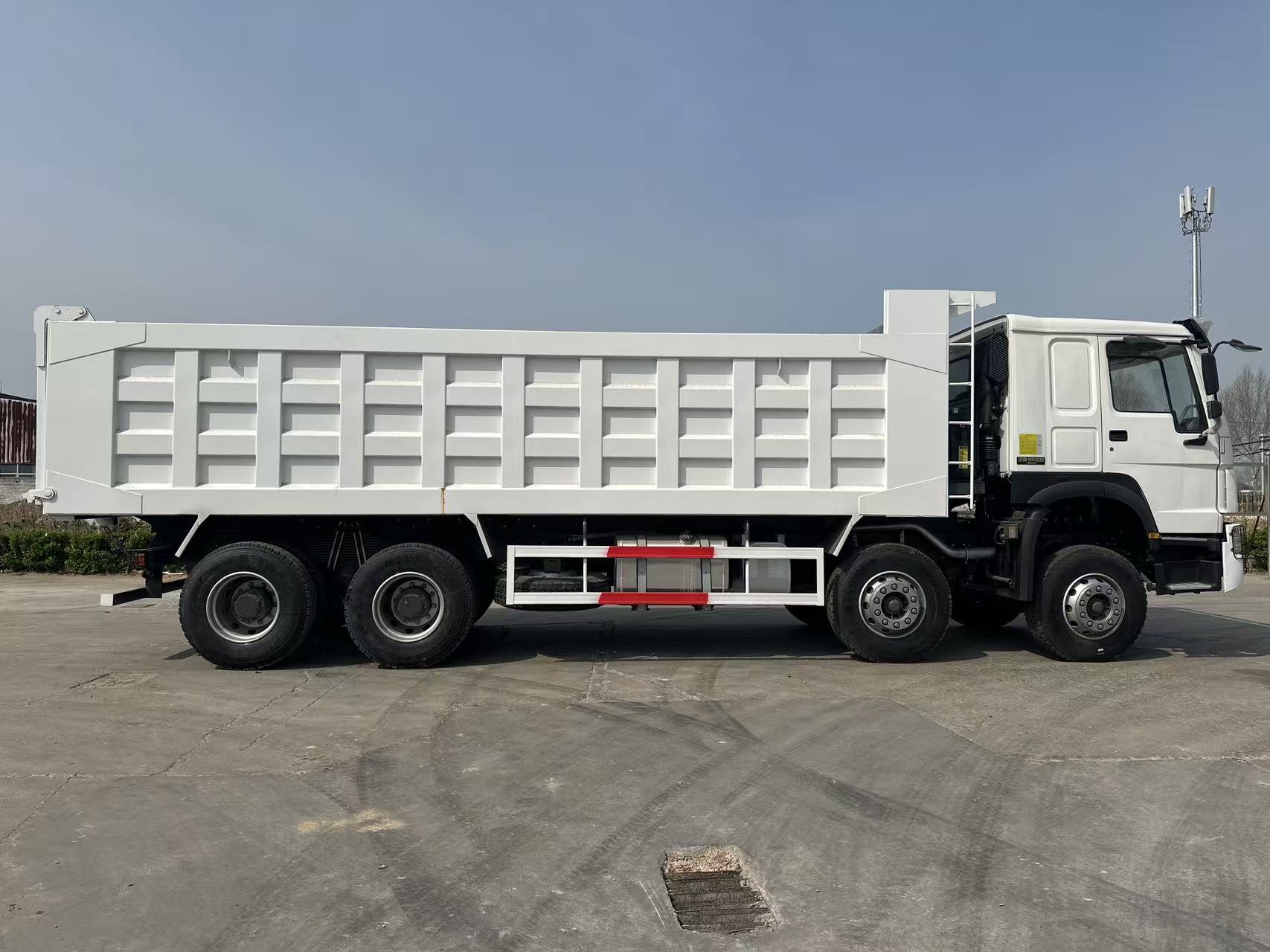

| Product Name | SINOTRUK HOWO 420HP 8×4 Tipper Dump Truck (White) |
| Application | Mining, large-scale construction projects, heavy-duty earthmoving works, sand and gravel transportation, bulk material handling in Africa and Middle East |
| Engine | SINOTRUK WD615.96 / Weichai WP12.420E32, 420HP, inline 6-cylinder, water-cooled, turbocharged diesel engine, displacement 11.596L (professionally maintained and tested) |
Emission Standard |
Euro 2 / Euro 3 |
Cab |
HOWO HW76 spacious cab, single sleeper, with air conditioner, four-point fully floating suspension with shock absorbers and transverse stabilizer, hydraulically damped adjustable driver's seat (refurbished) |
Gearbox |
HW19710, 10 forward gears + 2 reverse gears, with PTO (Power Take-Off) (professionally maintained) |
Drive Type |
8×4 (12 wheels, 4 axles) |
Front Axle |
HF9 dual front axle, load capacity 9,000 Kg per axle (2 axles, professionally maintained) |
Rear Axle |

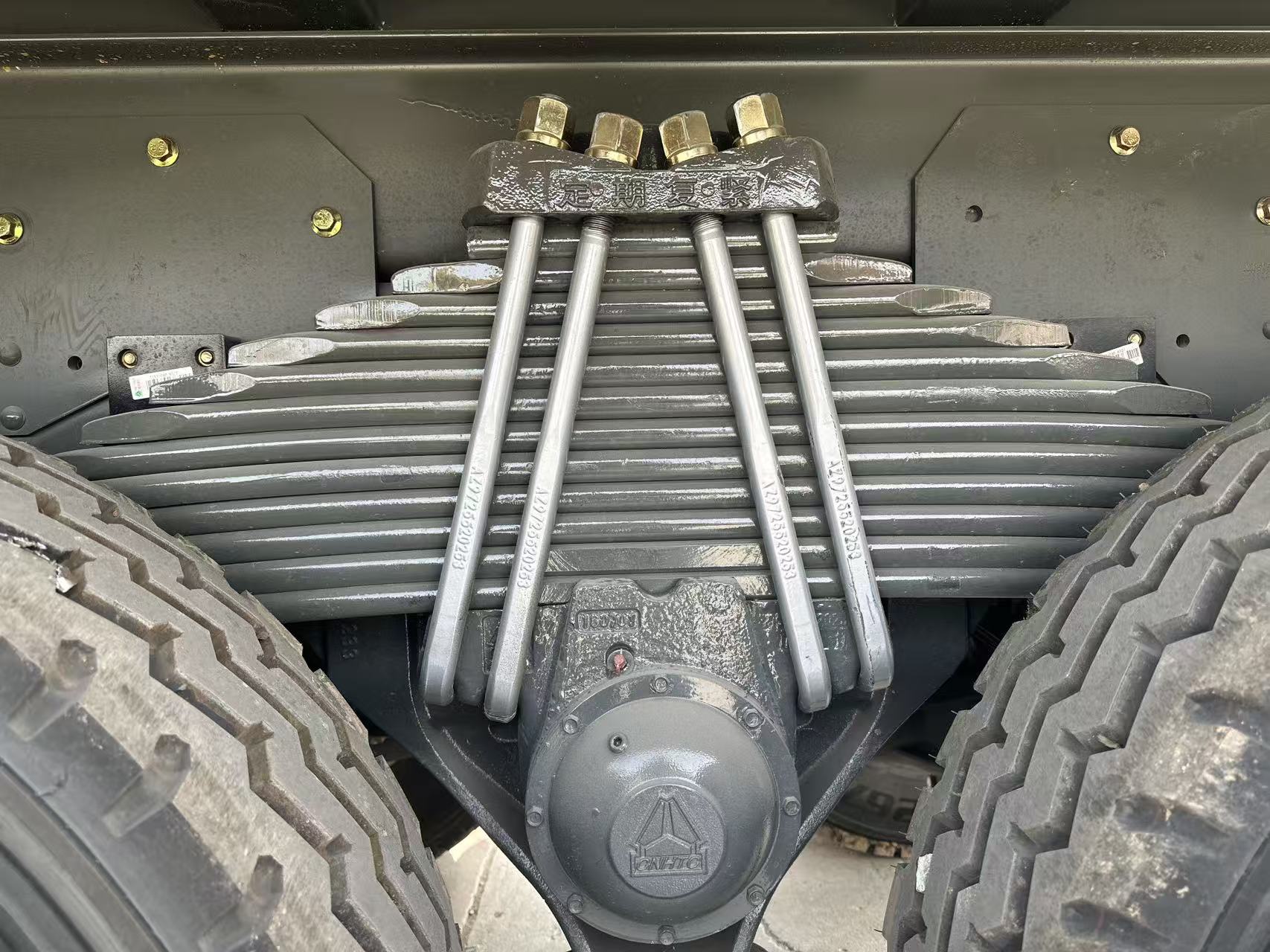

HC16 dual rear axle (hub reduction axle), load capacity 16,000 Kg each, with inter-wheel and inter-axle differential locks, ratio 5.73 (professionally maintained) |
Tires |
12.00R20 radial tire (13 pieces including spare tire, 70-80% tread remaining) |
Fuel tank |
300L - 400L iron fuel tank |
Color |
White (customizable upon request: blue, green, yellow, red, etc.) |
Type of preparation |
Front lifting dump body, floor thickness 8mm-10mm, side thickness 6mm-8mm, capacity 20-30 CBM |
3.SINOTRUK HOWO 420HP 8×4 Tipper Dump Truck (White) Cargo Box
The SINOTRUK HOWO tipper truck features a 7.2 - 8.0 meters long cargo box, offering greater volume and carrying capacity for heavy-duty mining and construction applications. The box is manufactured using robotic welding technology, utilizing professionally manufactured automated equipment. This advanced technology ensures consistent and high-quality welds. The box is constructed of high-strength manganese plate, which boasts high tensile and yield strengths, excellent corrosion resistance, resistance to deformation and breakage, and the ability to withstand significant pressure from heavy loads. Shot blasting technology creates a smoother surface, facilitating subsequent powder coating and significantly enhancing corrosion resistance for long-term durability in harsh working environments.
