| Description | Parameter value |
|
Product Name |

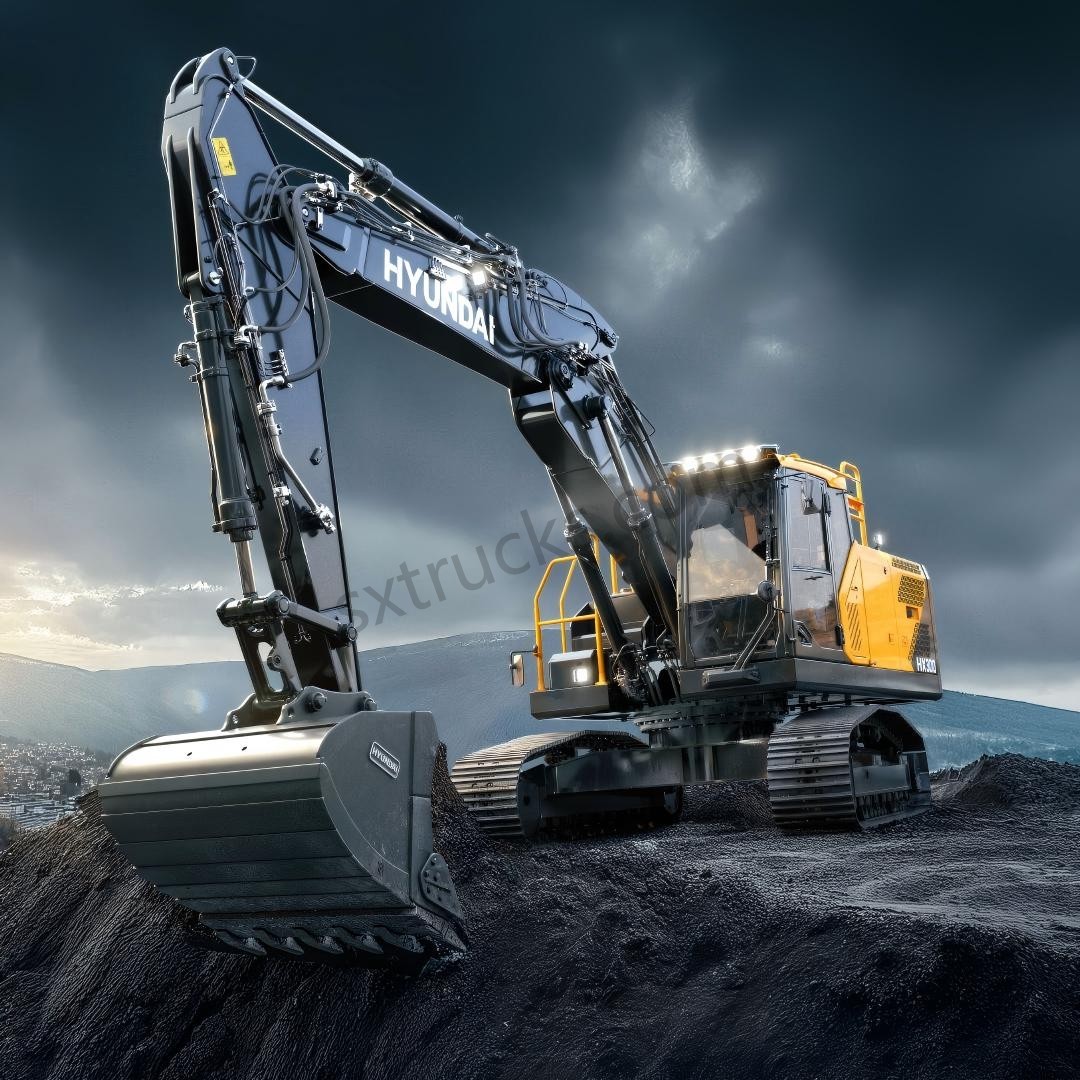

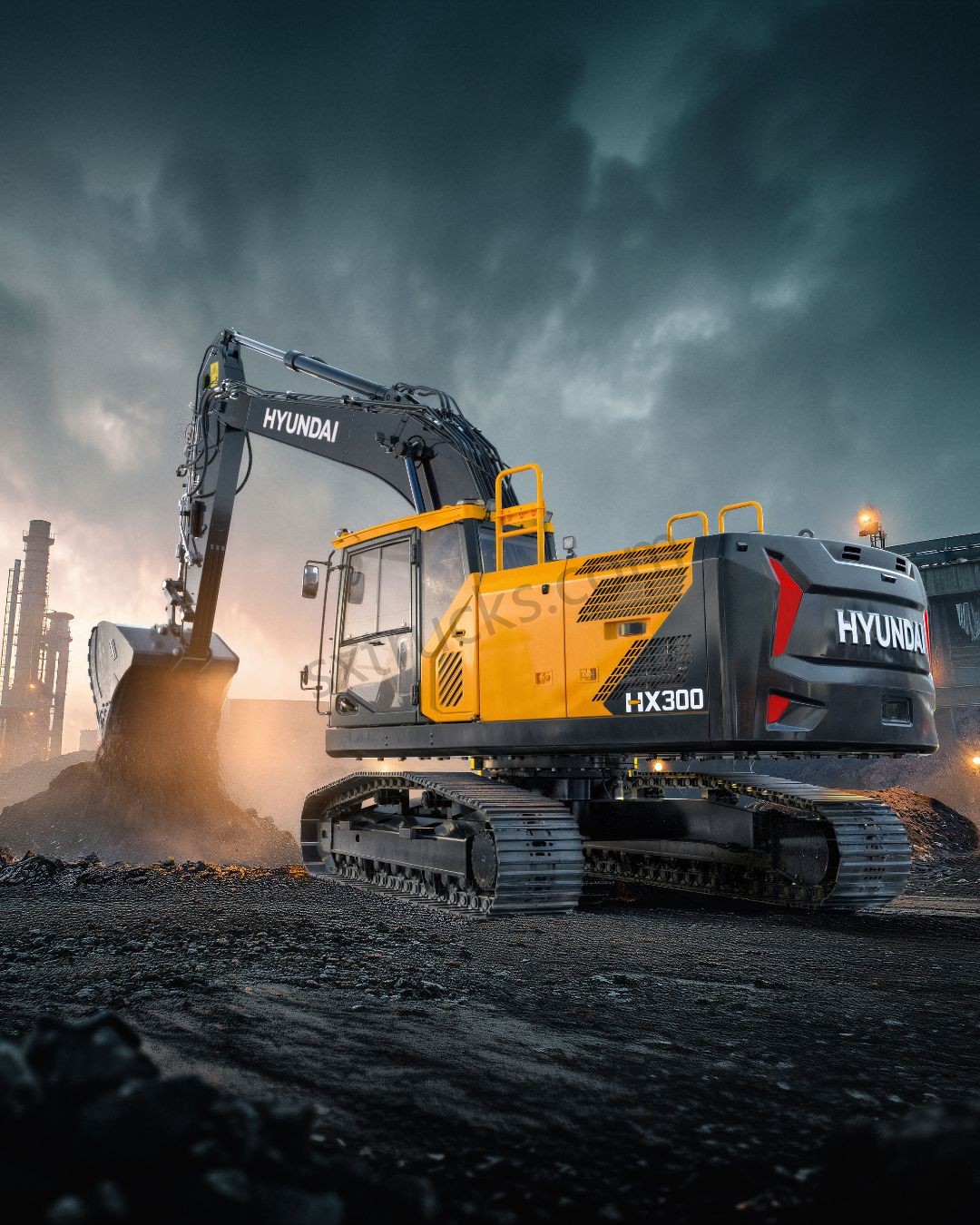

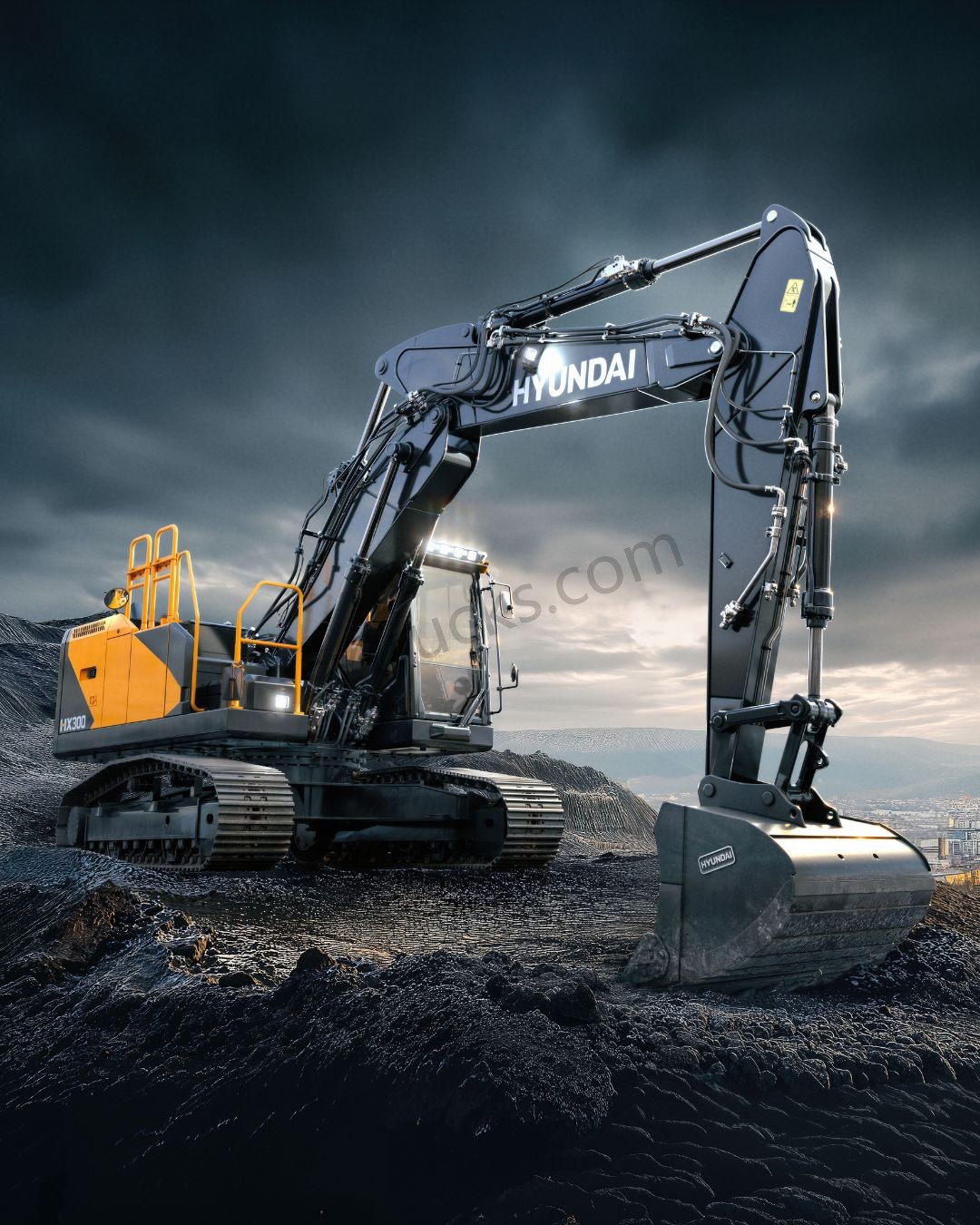

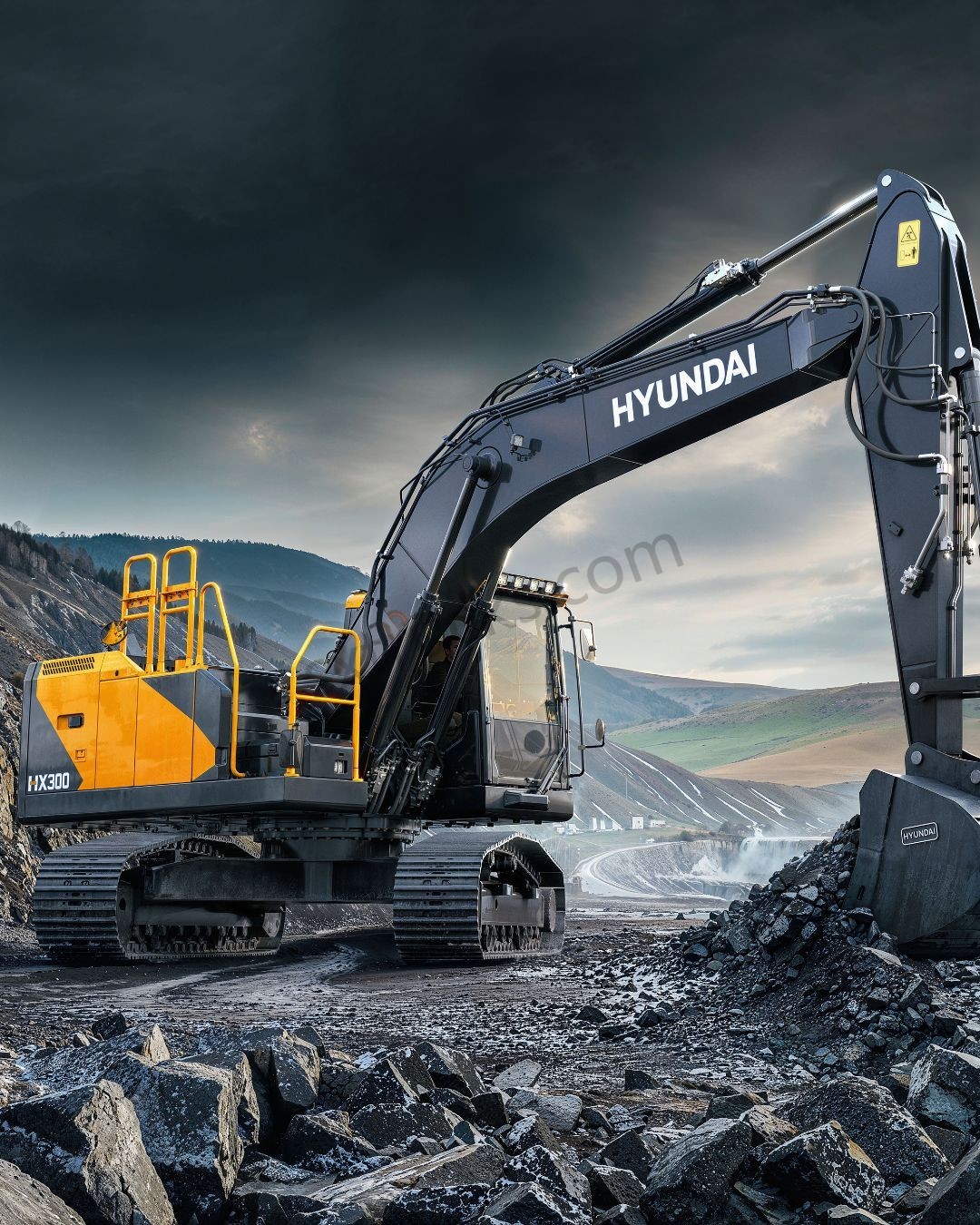

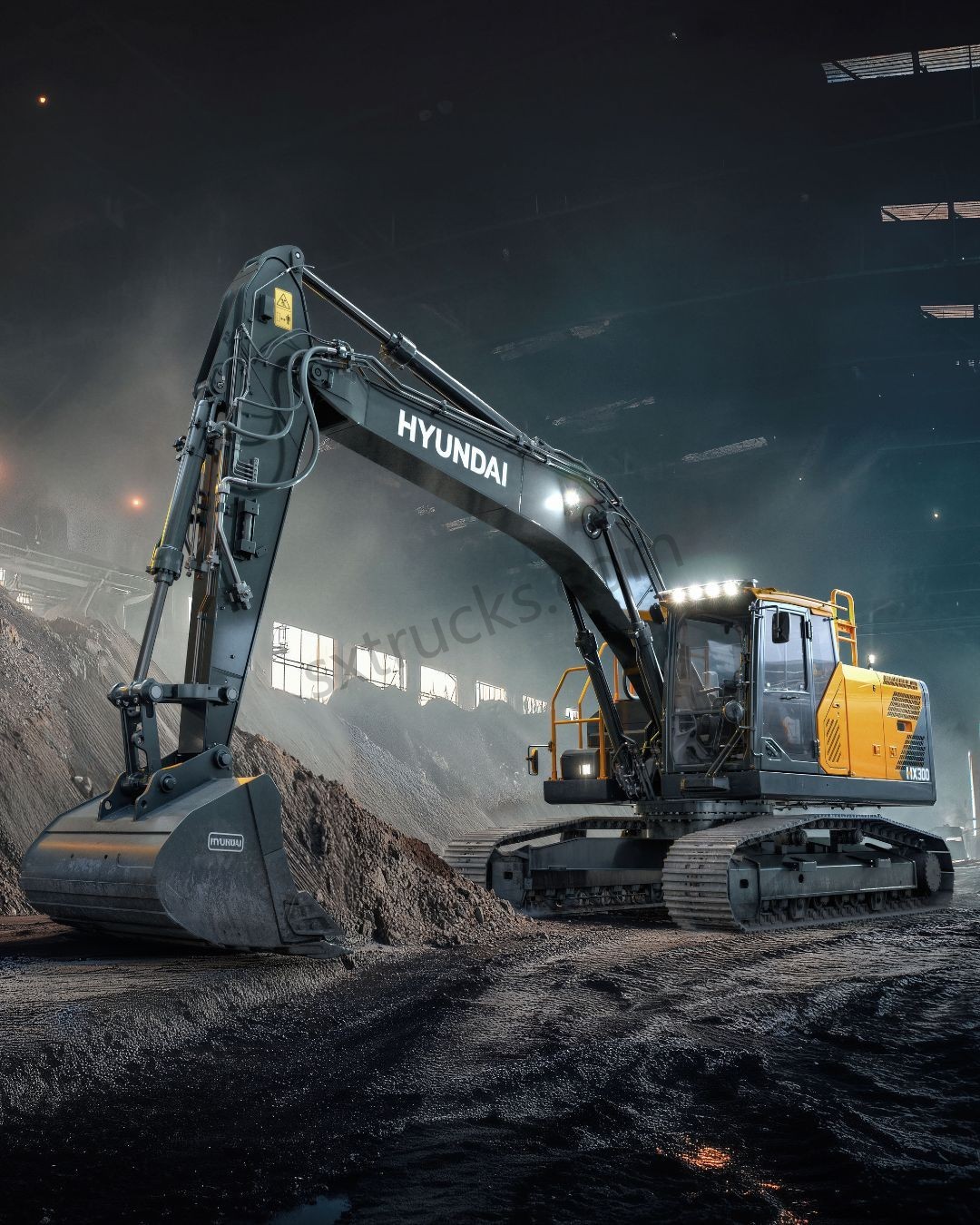

Hyundai HX300 Crawler Excavator |
|
Application Scenarios |
Mining, quarrying, large-scale earthmoving, road construction, foundation excavation, demolition, pipe laying, infrastructure projects |
Engine |
Cummins B6.7 / QSB6.7 / DX08 6-cylinder turbocharged diesel engine, 6.7L displacement
|
|
Emission Standard |
Stage V / Tier 4 Final / Stage IV (Configurable per Export Market & Regional Requirements) |
|
Operating Weight |
30,730 - 34,690 kg |
Bucket Capacity |
0.52 - 1.9 m³ |
Max Digging Radius |
10,820 - 18,510 mm |
|
Max. Digging Depth |
7,390 - 18,530 mm |
|
Cab |
ROPS certified cab with 8-12.8" intelligent touch screen, automatic climate control, adjustable heated/cooled suspension seat, rear-view camera, 360° Surround View Monitoring (SAVM with 6 AI cameras), one-key start, Bluetooth audio, LED working lights |
|
Travel System |
Heavy-duty tracks (600mm track shoes), travel speed 3.0-6.1 km/h (high/low), gradeability 70% (35°), max traction force
|
|
Color |
Hyundai Yellow (body) + Dark Gray (boom/counterweight/undercarriage) |
|
Customization & Modification |
Supports various attachments: hydraulic hammer, grapple, quick coupler, hydraulic shear, auger, etc.; long reach version available (LR model, max digging depth 14.8-18.5m); optional dozer blade; 2D/3D machine guidance systems; Hi MATE telematics system; three power modes (P/S/E); lifting mode; EPFC (Electronic Pump Flow Control) |
