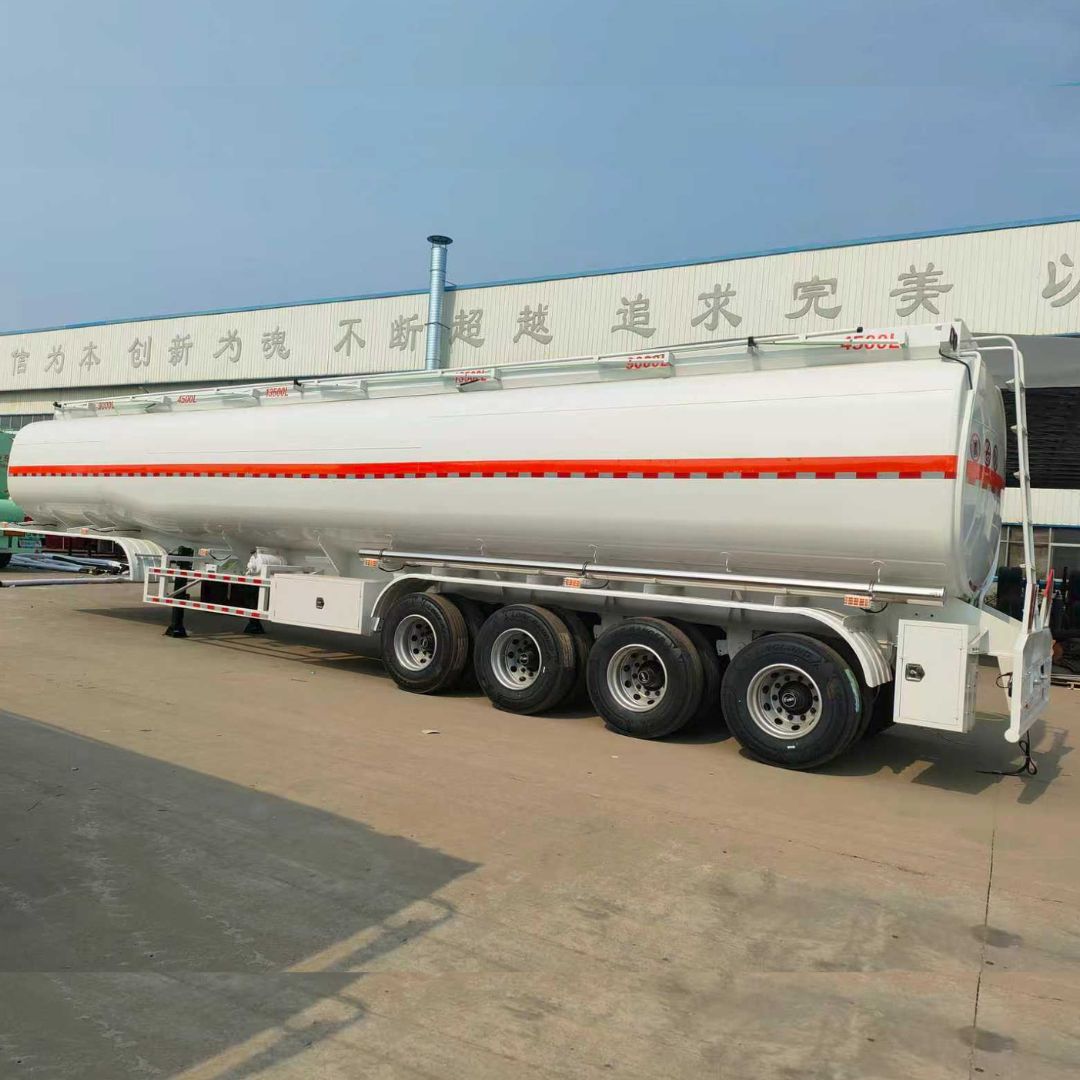

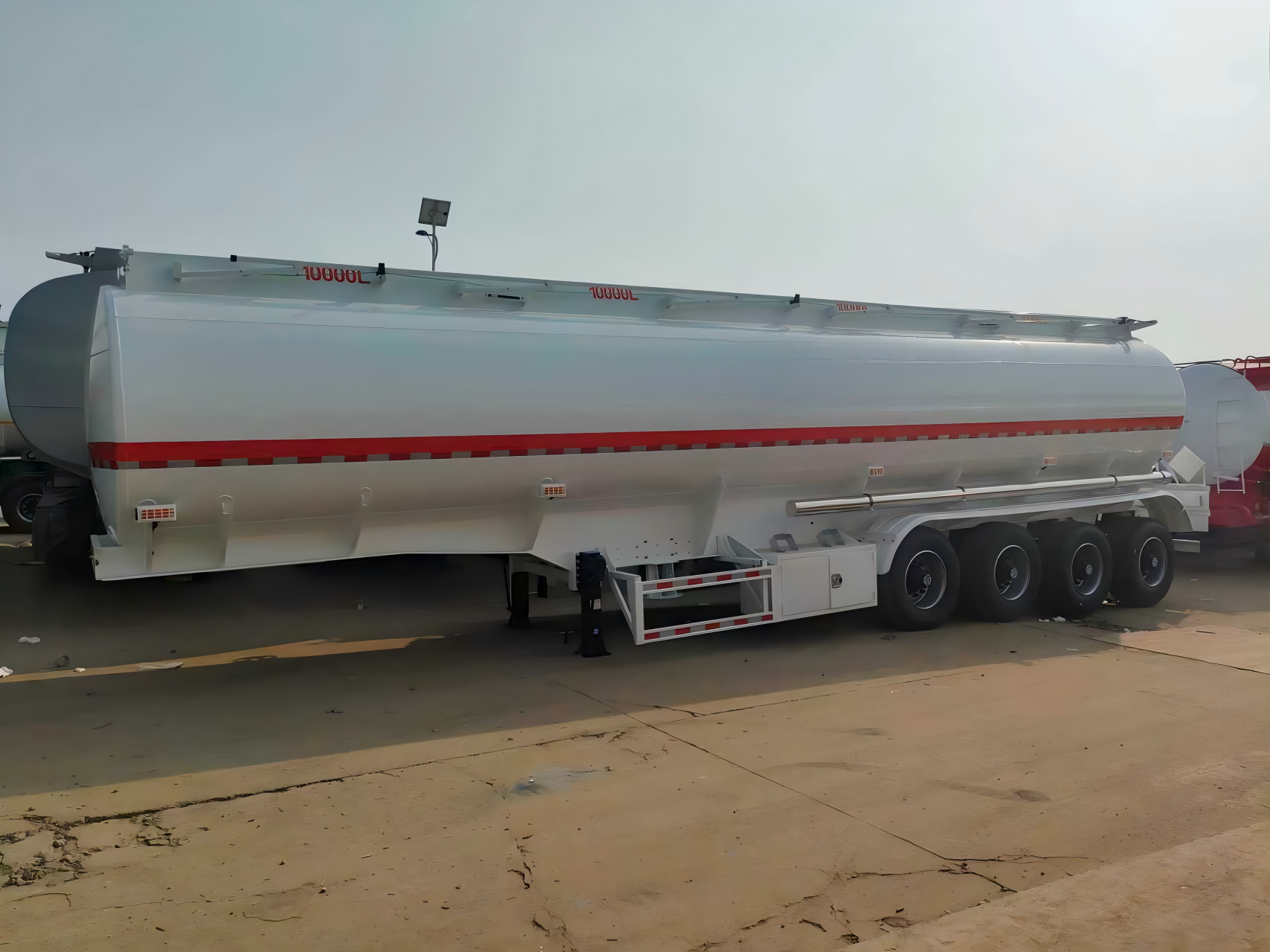

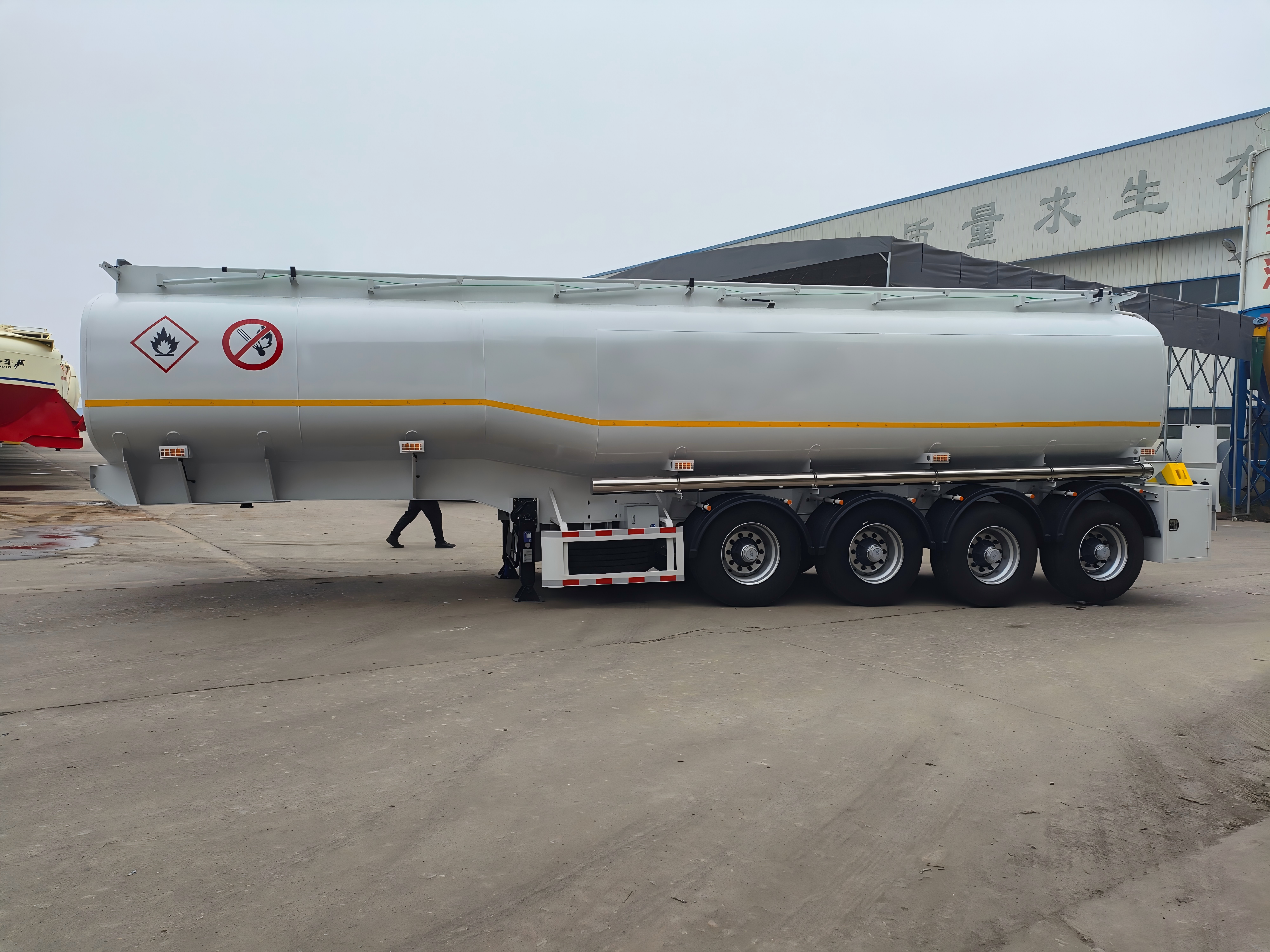

| Product Name | 45m³ Fuel / Liquid Transport Tank Trailer |
| Overall Dimensions (L×W×H) | 12,620 mm × 2,500 mm × 3,700 mm |
| Axles | 4 axles (axle spacing: 6,373 + 1,310 + 1,310 + 1,310 mm) |
| Suspension | Mechanical suspension, 10 leaf springs × 13 mm thick |
| Kingpin | Standard 2-inch or 3.5-inch (as per chassis requirement) |
| Landing Gear | Heavy-duty mechanical landing gear, double-speed operation |
| Tires | 12R22.5 or 315/80R22.5 (tubeless, confirmed per order) |
| 9.0-22.5 or 8.5-22.5 steel rims | |
| Volume | 45 m³ (effective), equally divided into 4 compartments, each with 5% vapor space |
| Transport Medium | Diesel, gasoline, or other petroleum-based liquids |
| Tank Material | Carbon steel (Q235B or equivalent, integrated with main beam) |
| Head Material | Elliptical or dished end, same material as tank |
| Partitions (Baffles) | With baffles & anti-surge plates between compartments |
| Manhole Covers | 500 mm or 600 mm manholes with breather valve (one per compartment) |
| Loading Method | Top loading or bottom loading (as per configuration) |
| ABS System | 4-channel ABS with sensors and tone rings |
Diesel / gasoline transport、Multi-stop fuel delivery、Mining & rough terrain、Long-haul bulk liquid logistics、Fleet & depot fueling
