| Capacity | 28m³ – 80m³ |
| Overall Dimension (L×W×H) | 11000–13000 × 2500 × 4000 mm |
| Tank Material | Q345B high-strength steel |
| Tank Thickness | 4–6 mm |

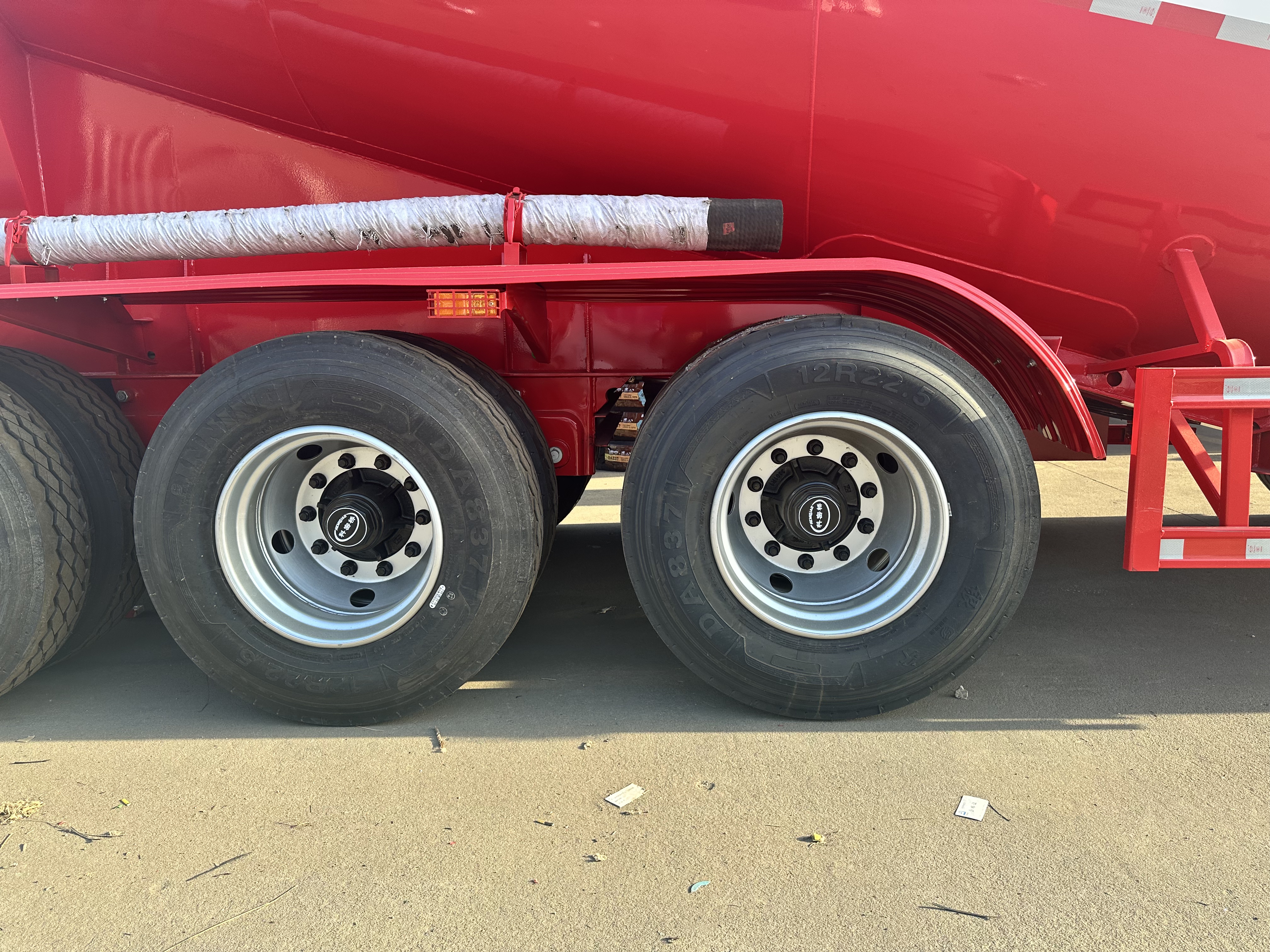

| Axles | 3 axles, 13T each (FUWA/BPW optional) |
| Tires | 12R22.5 (12 units) |
| Suspension | Mechanical or air suspension |
| Discharge Method | Pneumatic (compressed air) |
| Discharge Rate | 1.2–1.5 tons/min |

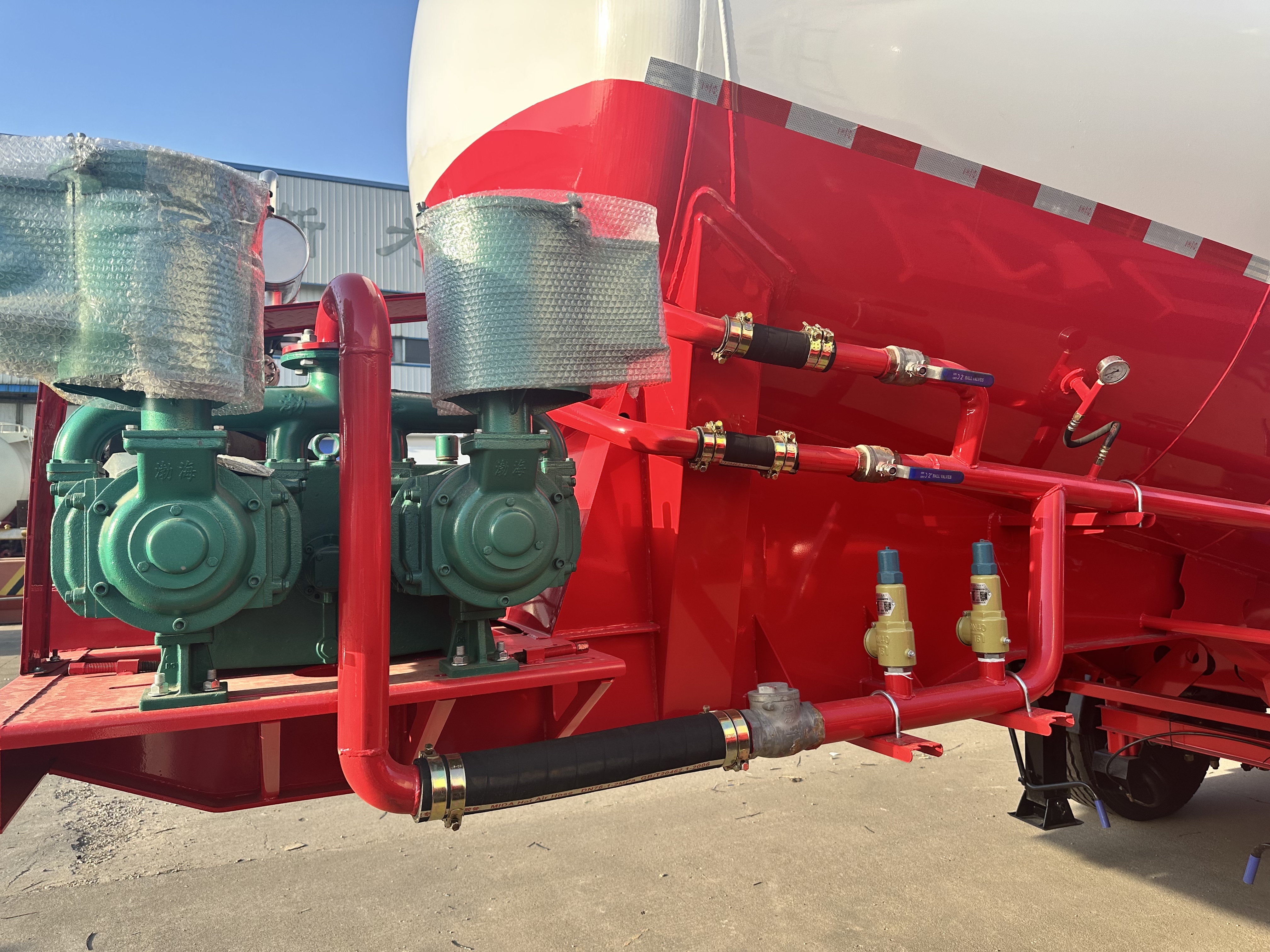

| Air Compressor | 10–12 m³/min, 0.2 Mpa |
| Discharge Height | Up to 15m |
| Brake System | WABCO relay valve + ABS (optional) |

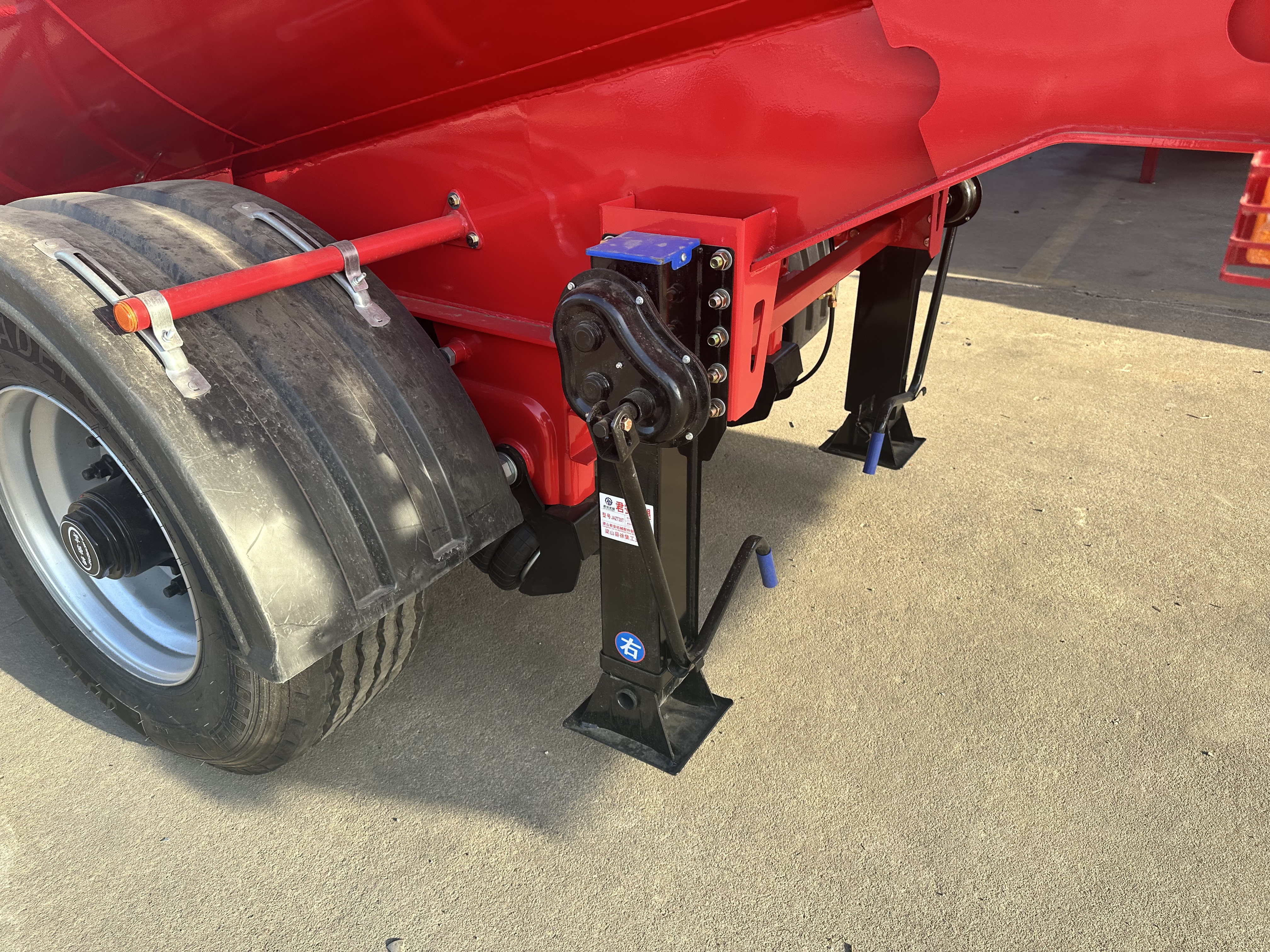

| Landing Gear | JOST, 28T capacity |
| Kingpin | 2" or 3.5" (JOST optional) |
| Optional | Multi-compartment, lightweight design, custom color |
| Capacity | 28m³ – 80m³ |
| Overall Dimension (L×W×H) | 11000–13000 × 2500 × 4000 mm |
| Tank Material | Q345B high-strength steel |
| Tank Thickness | 4–6 mm |
| Axles | 3 axles, 13T each (FUWA/BPW optional) |
| Tires | 12R22.5 (12 units) |
| Suspension | Mechanical or air suspension |
| Discharge Method | Pneumatic (compressed air) |
| Discharge Rate | 1.2–1.5 tons/min |
| Air Compressor | 10–12 m³/min, 0.2 Mpa |
| Discharge Height | Up to 15m |
| Brake System | WABCO relay valve + ABS (optional) |
| Landing Gear | JOST, 28T capacity |
| Kingpin | 2" or 3.5" (JOST optional) |
| Optional | Multi-compartment, lightweight design, custom color |

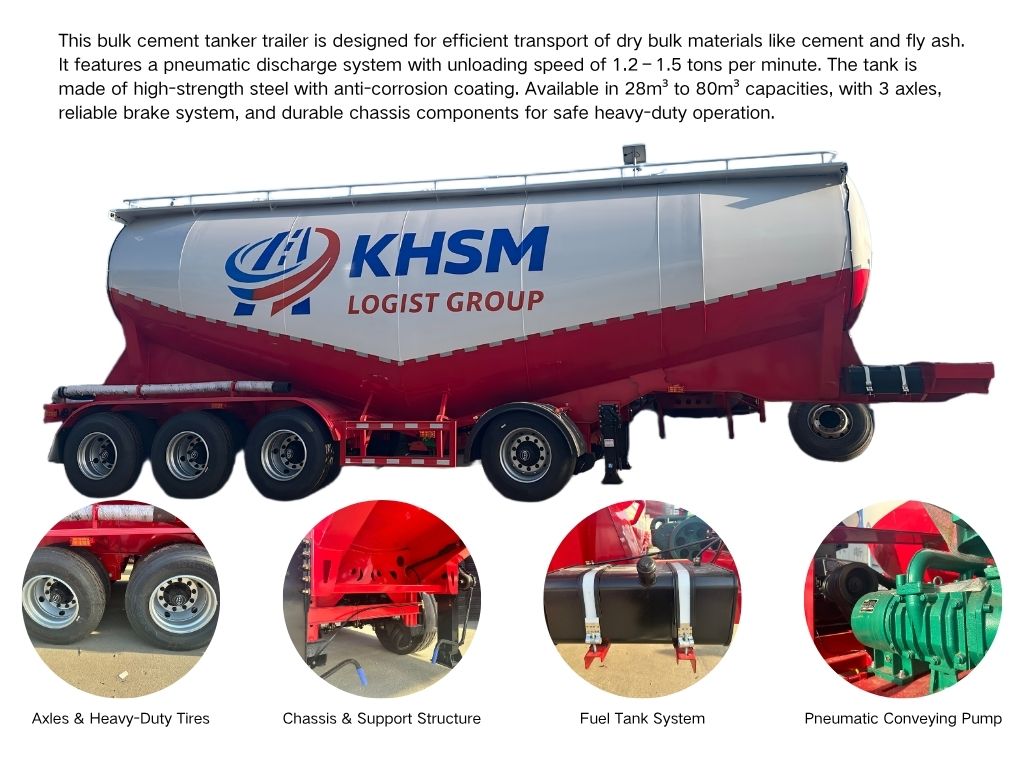

1.Available in 28m³ to 80m³ capacity, ideal for transporting cement, fly ash, lime powder, and other dry bulk materials.
