1.Product Introduction

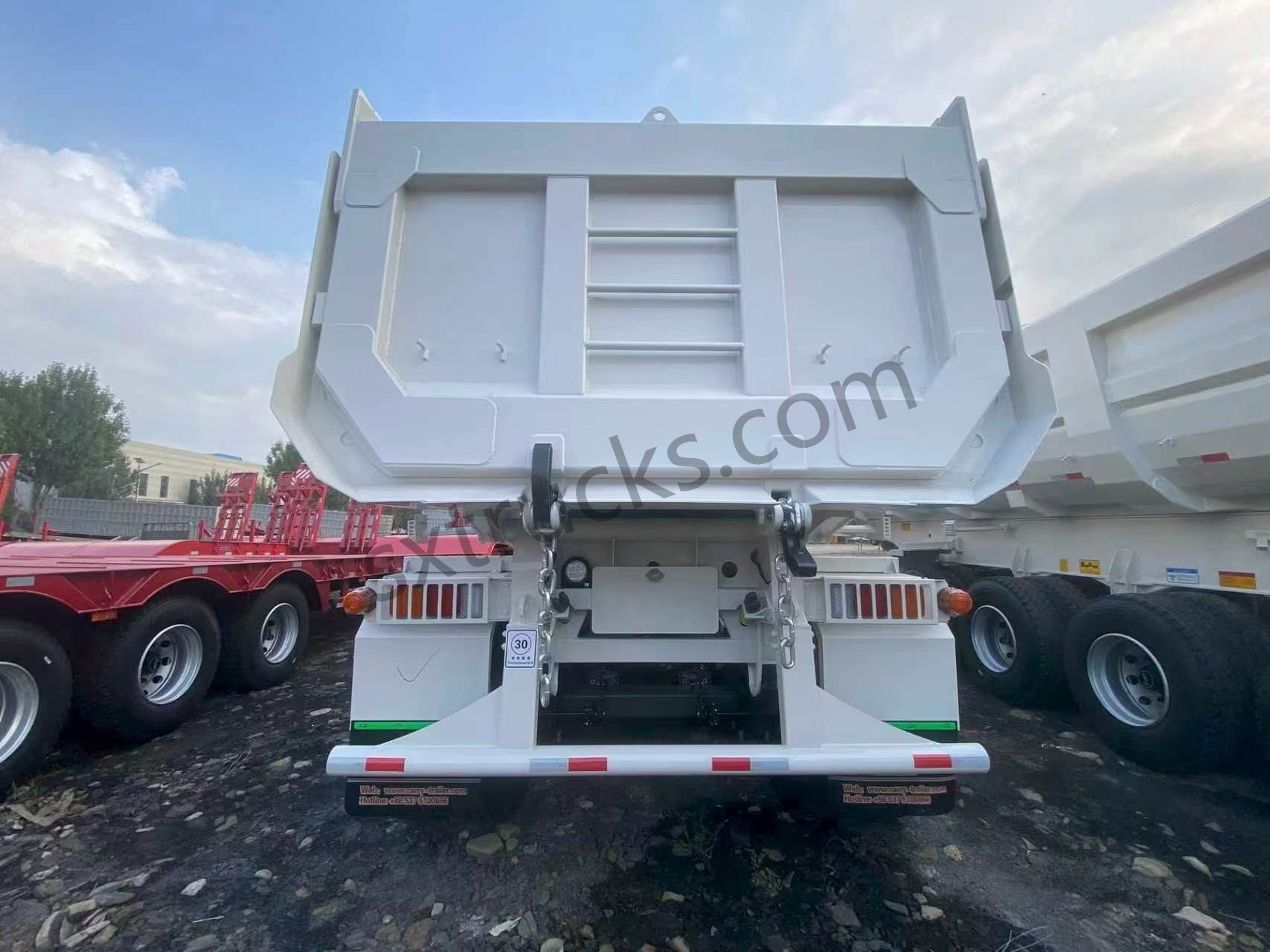

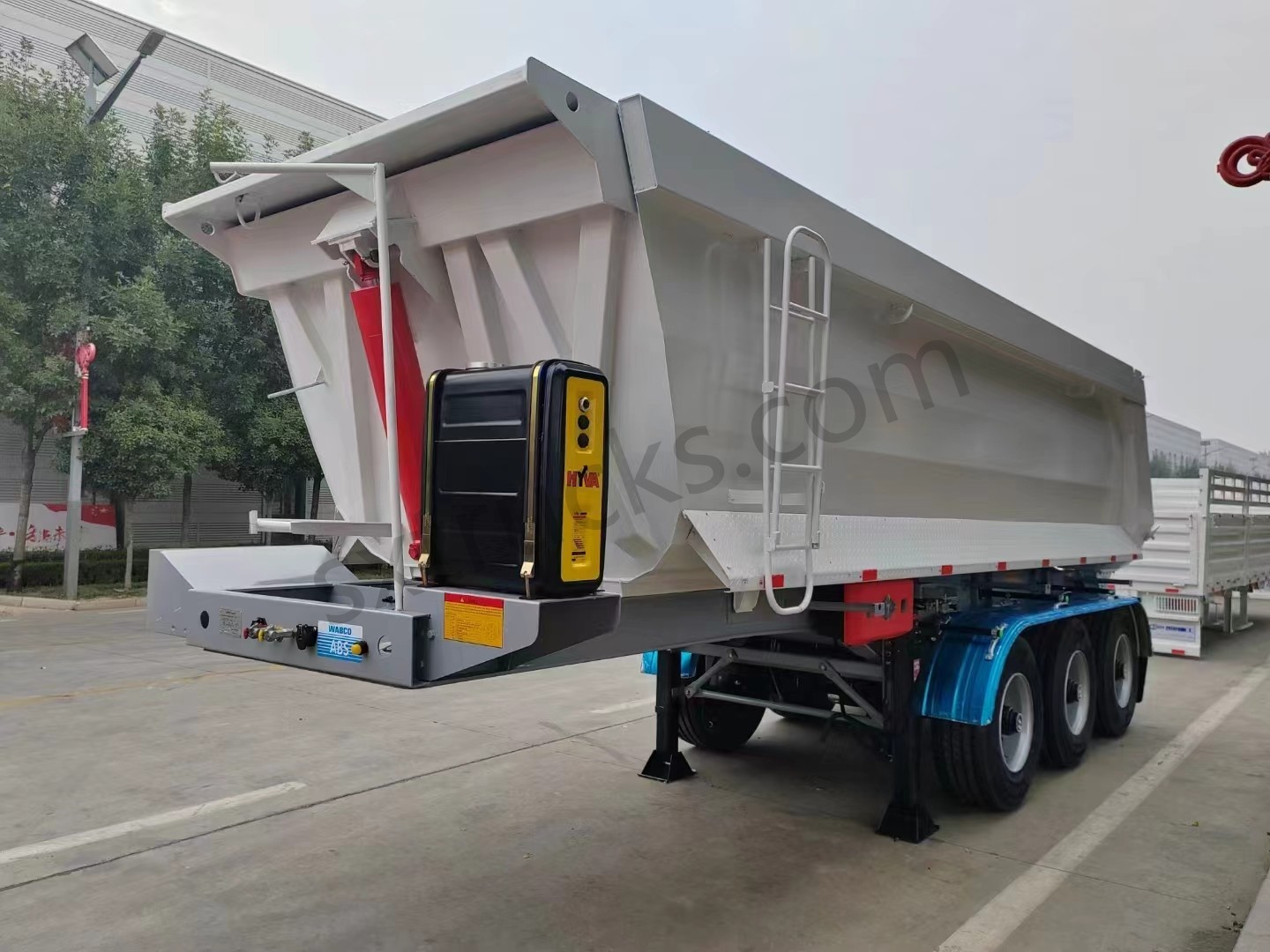

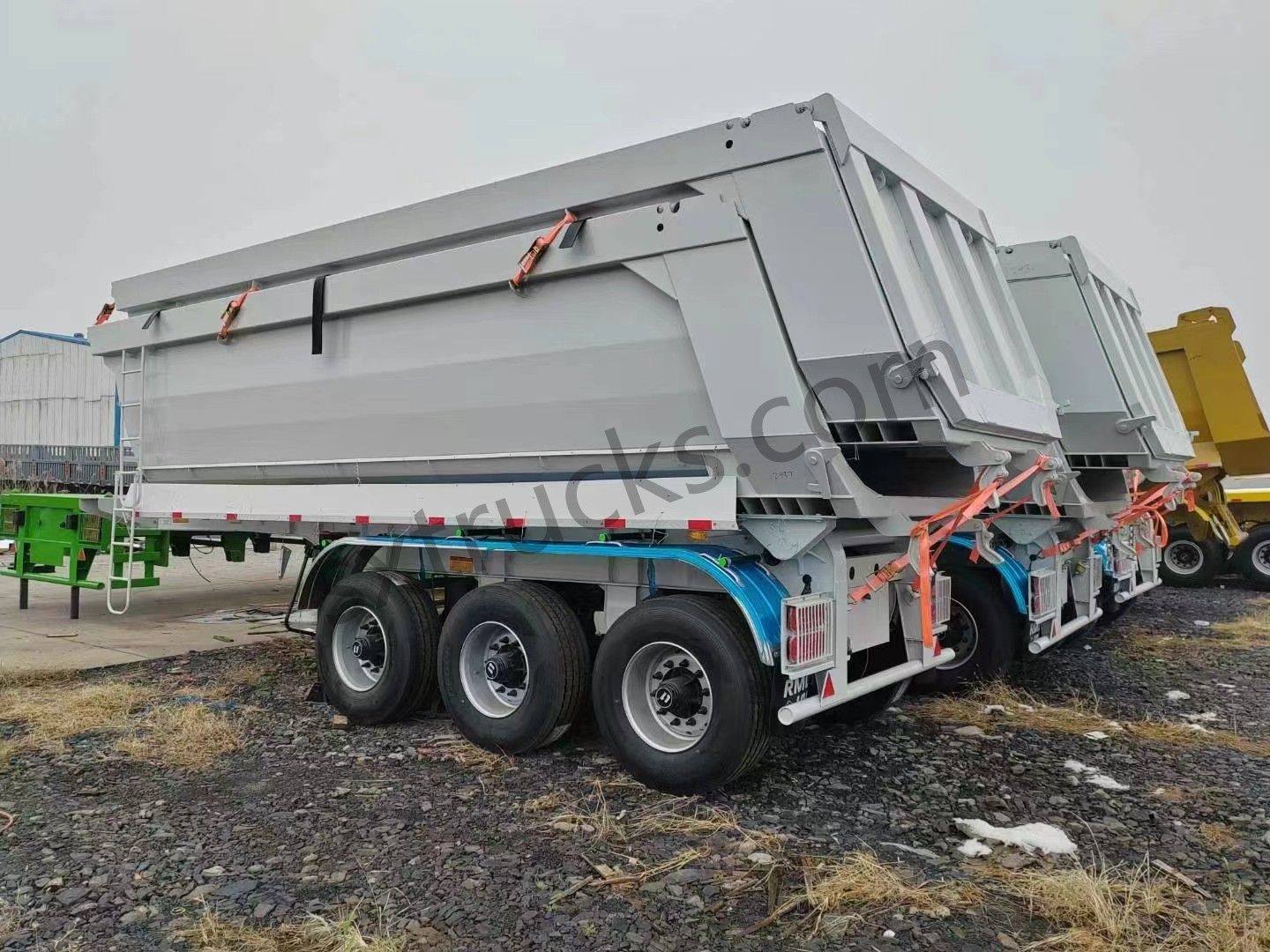

This 3-axle U-type rear dump semi-trailer is a heavy-duty, high-performance transport solution engineered for efficient bulk material handling. Ideal for loading and unloading sand, soil, gravel, construction waste, and other loose goods, it is widely deployed in mining, construction, and infrastructure projects. Built to withstand harsh operating conditions, it is perfectly tailored to meet the transportation demands of African markets including Sierra Leone.
2.Basic Specifications
| Item |
Parameter |
| Overall Dimension |
9300mm×2500mm×3482mm |
| Total Volume |
30CBM |
| Lifting System |
SX Hydraulic Cylinder |
| Axle |
3 Axles, 13T |
| Tire |
12R22.5 |
| Suspension |
Mechanical Suspension |
| Kingpin |
Kingpin JOST Brand 2.0" or 3.5" |
| Landing Gear |
28T Heavy Duty Landing Gear |
| Brake System |
WABCO ABS System |
3.Optimized Main Beam Design
The main beam is reinforced with triangular plates and fitted with balance beams, delivering enhanced stability and deformation resistance. This design effectively boosts the overall vehicle safety and extends the service life of the trailer, even under heavy-load operations.
4.Upgraded Safety Configuration
Equipped with a standard WABCO ABS anti-lock braking system, the trailer effectively prevents wheel lock during braking, ensuring maximum driving safety on complex road surfaces. The optimized U-shaped body design minimizes material buildup, enabling smooth, residue-free unloading every time.
