| Description | Parameter value |

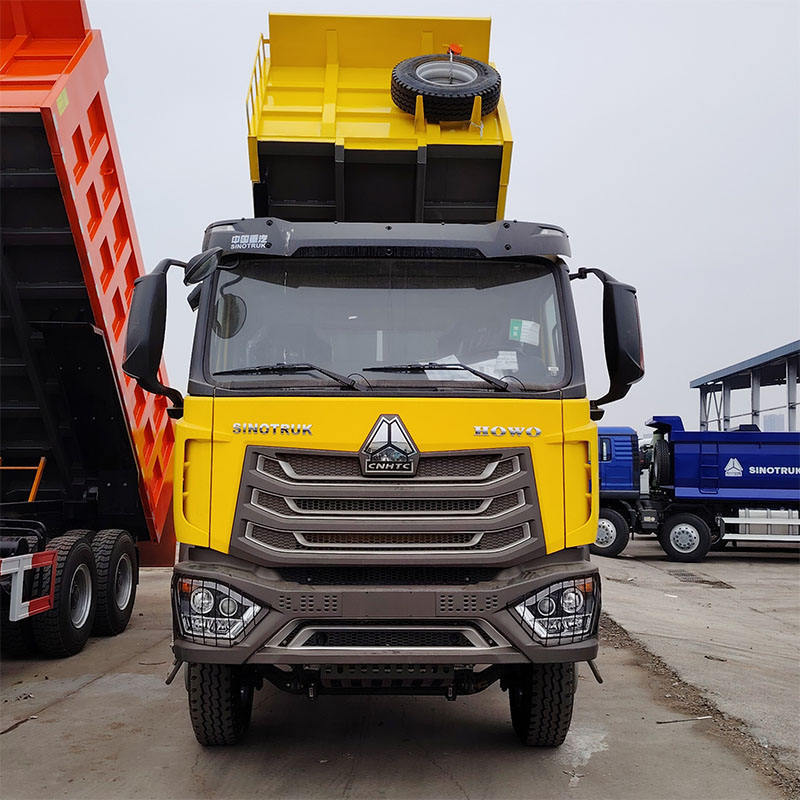

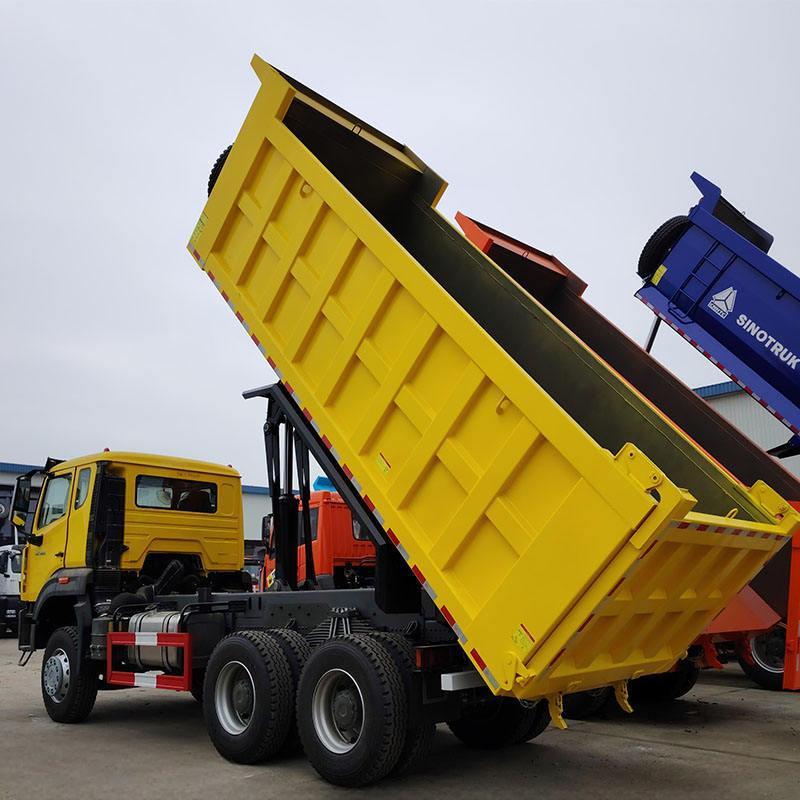

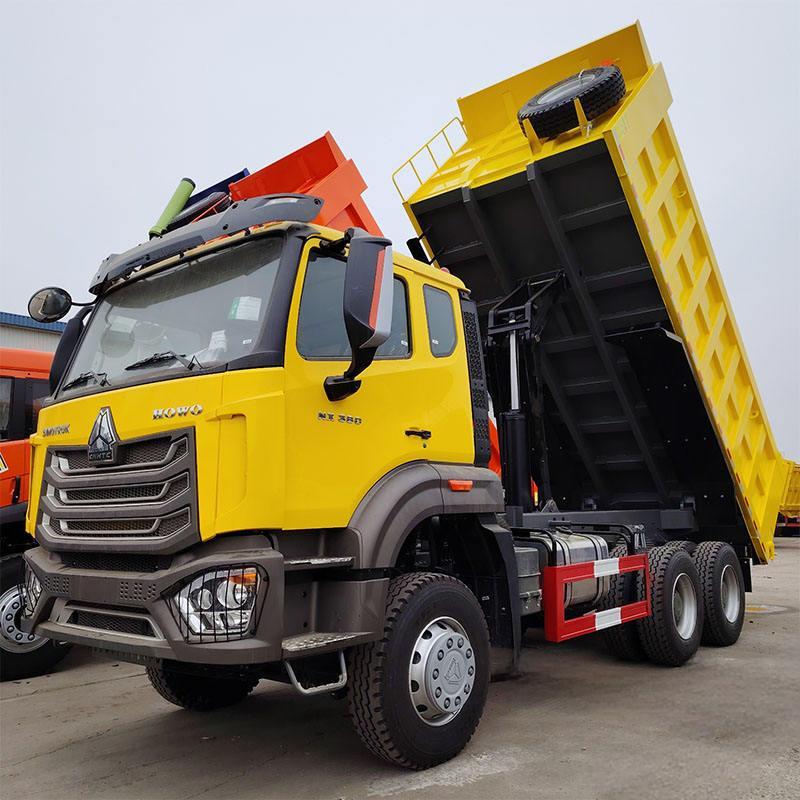

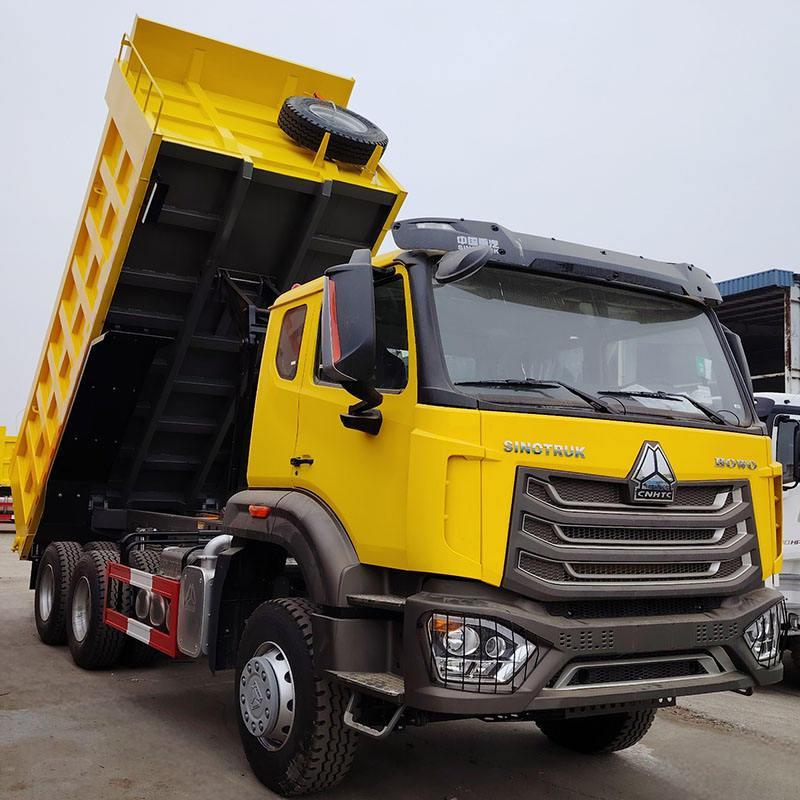

| Product Name | SINOTRUK HOWO NX 6×4 Tipper Truck |
| Application | Mining, large-scale construction projects, road building, earthmoving works, sand & gravel transportation |
| Engine | SINOTRUK WD615.47 / Weichai WP10.380E22, 371HP, 6-cylinder in-line, water-cooled, turbocharged diesel engine |
Emission Standard |
Euro 2 |
Cab |
H77L cab, single sleeper, with air conditioner, four-point fully floating suspension, hydraulically damped adjustable driver's seat |
Gearbox |
HW19710, 10 forward + 2 reverse gears, with PTO (Power Take-Off) |
Drive Type |
6×4 (10 wheels, 3 axles) |
Front Axle |
HF9 / VGD95, rated load capacity: 9,000 - 9,500 kg |
Rear Axle |
HC16 / MCP16ZG heavy-duty dual rear axle, rated load capacity: 16,000 kg each, with inter-wheel & inter-axle differential locks |
Tire |
12.00R20 radial tires (11 pieces including spare tire) |
Fuel tank |
300L - 400L iron fuel tank |
Color |
Customizable (white, green, yellow, red, black, blue, etc.) |
Type of preparation |
Front-lifting tipper body; floor thickness: 8mm, side wall thickness: 6mm; capacity: 18-20 CBM |
